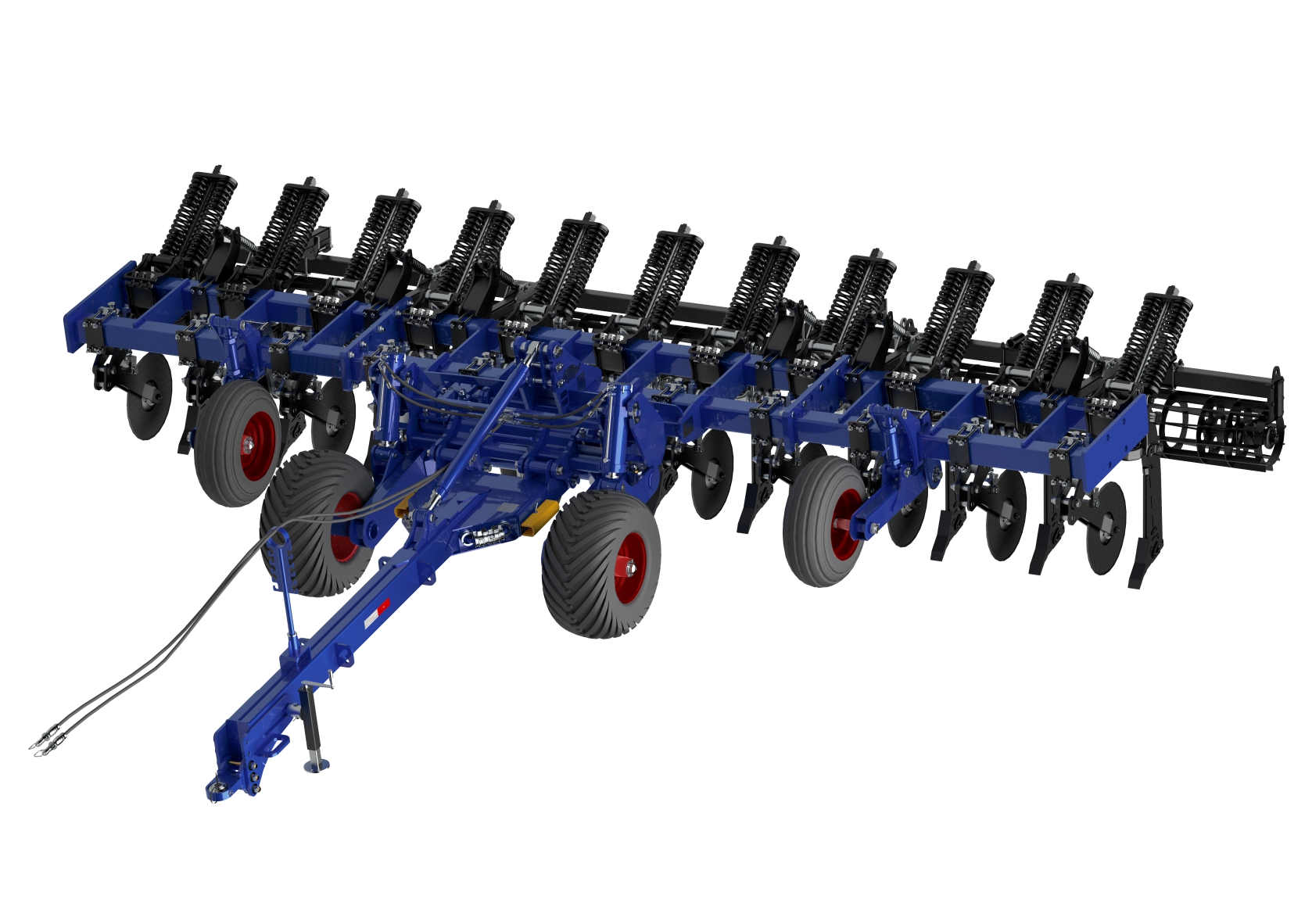

ROMPTHOR 550 ADVANCED LINEAR - 0501094144



Folha
ITEMCODEDESCRIPTIONQT
001   ASSY FRAME - 4/5H
002   ASSY FRAME - 6/7/8/9/10/11/12H
003 0531047048 ASSY FRAME - 4H
004 0531047068 ASSY FRAME - 5H
005 0531047080 ASSY FRAME - 6H
006 0531047063 ASSY FRAME 7H
007 0531047084 ASSY FRAME - 8H
008 0531047091 ASSY FRAME -9H
009 0531047088 ASSY FRAME -10H
010 0531047095 ASSY FRAME - 11H
011 0531047097 ASSY FRAME - 12H
012 0531047002 DRAWBAR ASSY
013 0521049461 HITCH TONGUE WITH BUSHING
014 0541057259 FRONT CENTER WHEEL
015 0501056467 WHEEL WITHOUT TIRE
016 0503060102 WHEEL AND TIRE 400/60 - 14L RIGHT
017 0531054736 SEMI BEARING WITH NYLON SHIM
018 0541059011 ASSY EXTENDER ASSEMBLY
019 0531054036 ASSY CENTER CYLINDER BEARING
020 0531054025 HYDRAULIC CILINDER
021 0511048088 DRAWBAR JACK
022 0501053834 MALE QUICK COUPLER
023 0503063403 WHEEL WITH TIRE 400/60 - 14L LEFT
024 0531042216 70" CAGE ROLLER
025 0531042303 94" CAGE ROLLER
026 0531046315 102" CAGE ROLLER
027 0531044199 82" CAGE ROLLER
028 0531046912 3310 CAGE ROLLER ASSEMBLY
029 0521044951 BREAK ROLLER
030 0501046922 AGRICULTURAL BEARING DM OL 7 X 1.1/4 IMPLEMENT
031 0531047289 SUBSOILER ROD
032 0541054109 AUTOMATIC RESET ROD
033 0541055327 TRANSPORTATION LOCK
034 0531046757 BREAKER ROLLER ARM ASSY
035 0541058168 MANUAL CANISTER ASSY
036 0541057289 BLADE DISC ASSY
037 0541057305 DISC BLADE SUPPORT
038 0541057300 COULTER BLADE BOX
039 0511056909 DISC BLADE HUB WITHOUT DISC
040 0531047393 REAR WHEEL LEFT
041 0531046748 REAR WHEEL RIGHT
042 0531056855 R 1.3/4 UN 7 FPP 395 EXTENDER ASSY
043 0501051634 STUB SHAFT HUB ASSY
044 0501051142 CARRYING WHEEL HUB
