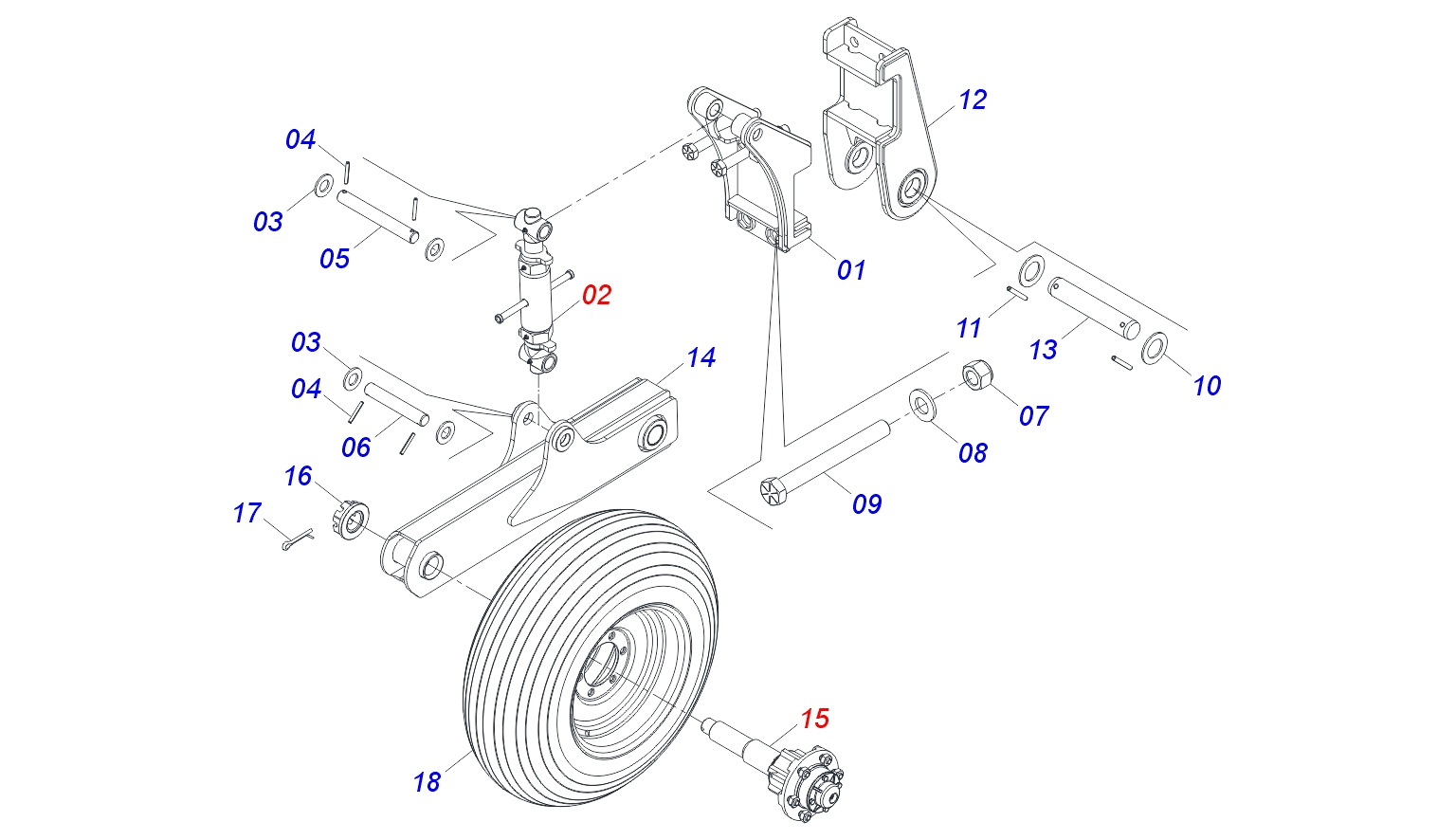

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0541060289 | REAR WHEELSET FIXING EXTENSION SUPPORT | 01 |
| 02 | 0531056855 | R 1.3/4 UN 7 FPP 395 EXTENDER ASSY | 01 |
| 03 | 0501017779 | FLAT WASHER 32 X 60 X 4,75 | 04 |
| 04 | 0503011877 | 0.3" X 2.4" SPRING PIN | 04 |
| 05 | 0501418398 | ARTICULATION AXLE | 01 |
| 06 | 0591018638 | ARTICULATION SHAFT 31.75 X 177 (HOLE) | 01 |
| 07 | 0503018754 | NUT 1 - 8 UNC - 2B G8 | 04 |
| 08 | 0531016049 | FLAT WASHER 27 X 52 X 4,75 ZN | 04 |
| 09 | 0503013935 | 1 UNC X 9 C S G.8 ZN BOLT | 04 |
| 10 | 0591018636 | SMOOTH WASHER 2. 3/64" X 3 . 11/32" X 5/32" ZN | 02 |
| 11 | 0503010843 | 0.4" X 3.3" SPRING PIN | 02 |
| 12 | 0541060291 | REAR WHEELSET FIXING SUPPORT | 01 |
| 13 | 0501418400 | ARTICULATION AXLE | 01 |
| 14 | 0501111405 | LEFT SIDE WHEEL | 01 |
| 15 | 0501051634 | STUB SHAFT HUB ASSY | 01 |
| 16 | 0501011301 | 1.1/2" UNC 6FPP 2.5/16" NUT | 01 |
| 17 | 0503010010 | 1/4" X 2.1/2" SPLIT PIN | 01 |
| 18 | 0503060181 | WHEEL AND TIRE | 01 |
