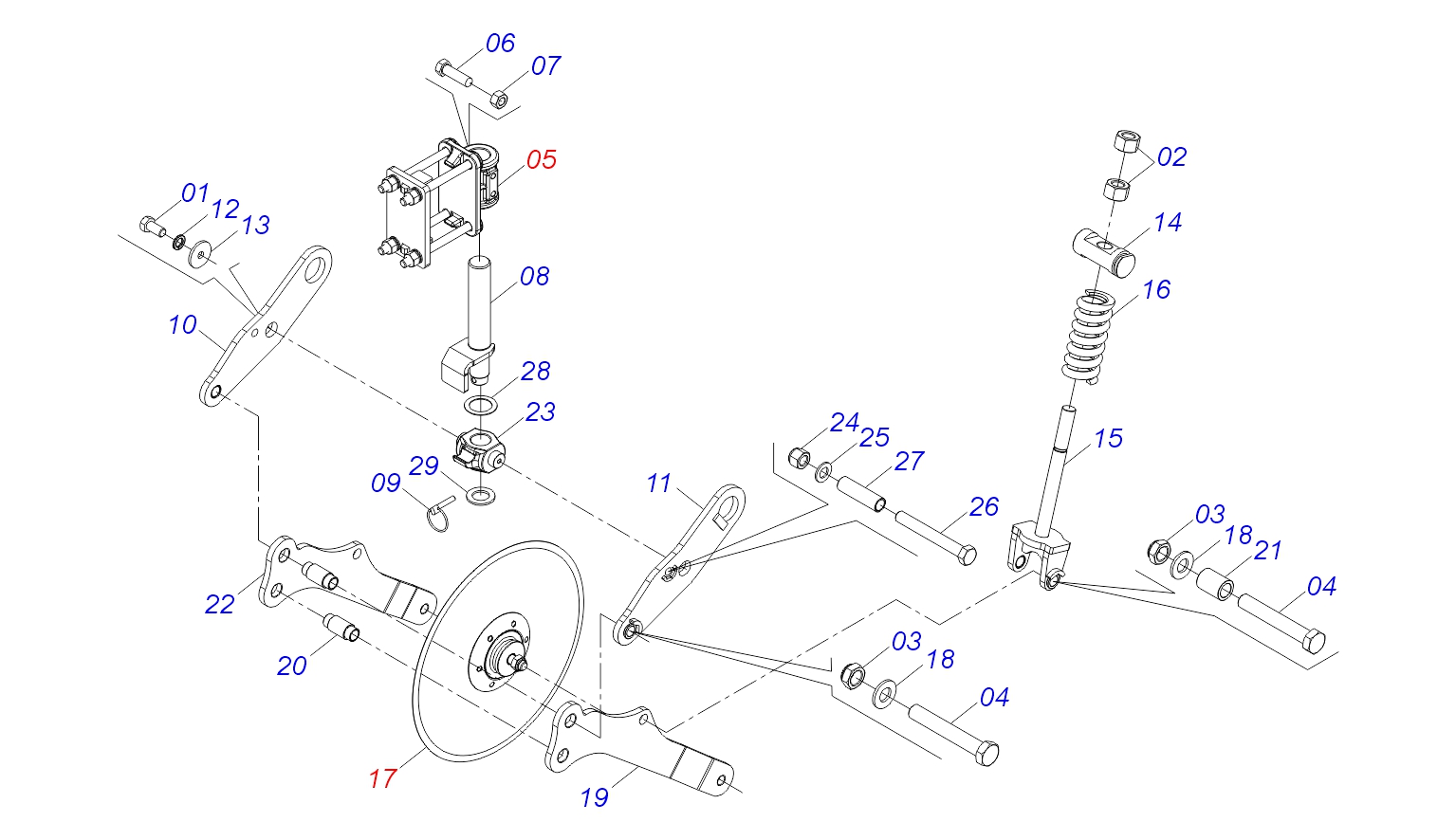

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0503012556 | 1/2" X 1" BOLT | 02 |
| 02 | 0501010087 | 1.1/4" NUT | 02 |
| 03 | 0503014182 | SELF-ADJUSTING NUT | 02 |
| 04 | 0501010060 | 1" X 6-1/2" BOLT | 02 |
| 05 | 0541057305 | DISC BLADE SUPPORT | 01 |
| 06 | 0503019116 | BOLT 5/8 UNC X 2.1/4 C S RT PC G.5 ZN | 02 |
| 07 | 0503010013 | HEX NUT 5/8 UNC G.5 ZN | 02 |
| 08 | 0541060307 | AXLE WITH BEATER | 01 |
| 09 | 0503034319 | LOCK PIN | 01 |
| 10 | 0541060309 | LEFT UPPER COULTER BLADE ARM | 01 |
| 11 | 0541060310 | RIGHT UPPER COULTER BLADE ARM | 01 |
| 12 | 0503010019 | SPRING WASHER 1/2" | 02 |
| 13 | 0561013871 | FLAT WASHER 13,50 X 50 X 4,75 ZN | 02 |
| 14 | 0501418478 | CRANK GUIDE | 01 |
| 15 | 0541060311 | COULTER BLADE SPRING FORK | 01 |
| 16 | 0503030541 | 3.4" X 8.0" X 0.8" SPRING | 01 |
| 17 | 0541057300 | COULTER BLADE BOX | 01 |
| 18 | 0511015994 | FLAT WASHER | 02 |
| 19 | 0501418476 | LEFT LOWER COULTER BLADE ARM | 01 |
| 20 | 0501418486 | ARTICULATION SLEEVE | 01 |
| 21 | 0501418487 | SLEEVE | 01 |
| 22 | 0541060481 | LOWER ARM RIGHT | 01 |
| 23 | 0502013196 | SUPPORT | 01 |
| 24 | 0503011075 | 3/4 UNC LOCK NUT | 01 |
| 25 | 0511017305 | FLAT WASHER | 01 |
| 26 | 0503016525 | 3/4" X 6" BOLT | 01 |
| 27 | 0501418479 | SLEEVE | 01 |
| 28 | 0521015342 | WASHER SPACER | 01 |
| 29 | 0501012916 | FLAT WASHER 40 X 66 X 4,75 ZN | 01 |
