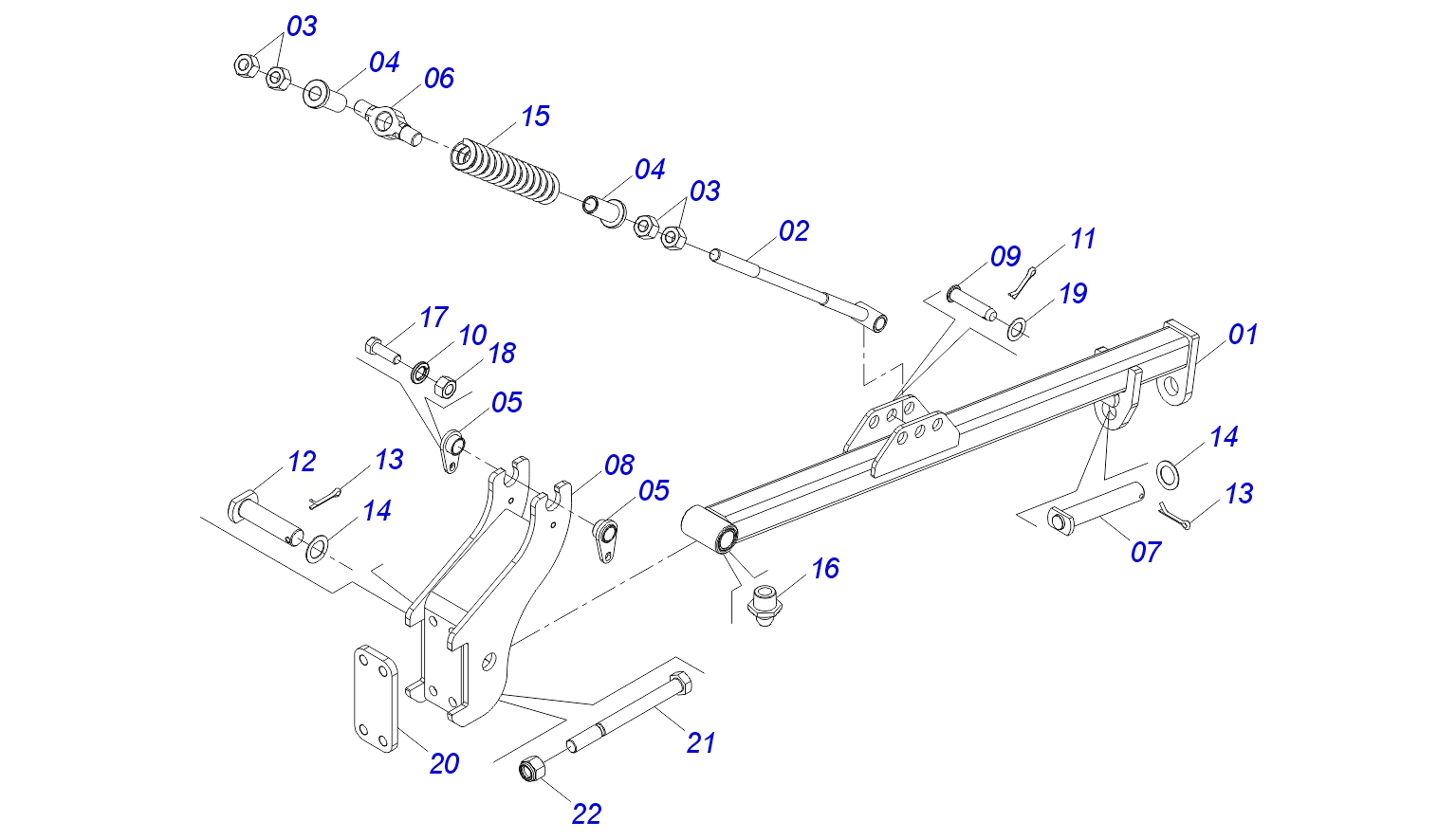

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0541060317 | CLOD BREAKER ROLL ARM | 01 |
| 02 | 0521065532 | SPRING ROD | 01 |
| 03 | 0501010059 | NUT 1.5/8 | 04 |
| 04 | 0571011377 | SPRING GUIDE SLEEVE | 02 |
| 05 | 0521063151 | TRUNNION LOCK ARTICULATOR SPRING ROD | 02 |
| 06 | 0571011378 | TRUNNION ARTICULATOR SPRING ROD | 01 |
| 07 | 0521062685 | ARTICULATION AXIS | 01 |
| 08 | 0541060316 | CLOD BREAKER ROLL FIXING SUPPORT | 01 |
| 09 | 0521010578 | COUPLING SHAFT | 01 |
| 10 | 0503010019 | SPRING WASHER 1/2" | 02 |
| 11 | 0503010523 | 1/4 X 2 SPLIT PIN | 01 |
| 12 | 0521010808 | 1.4" X 5.8" COUPLING SHAFT | 01 |
| 13 | 0503012267 | 5/16" X 3" SPLIT PIN | 02 |
| 14 | 0511019685 | FLAT WASHER | 02 |
| 15 | 0503031575 | COMPRESSION SPRING | 01 |
| 16 | 0503010002 | GREASE FITTING 1800 | 01 |
| 17 | 0503010920 | 1/2 UNC X 1.1/2 C S G.5 ZN BOLT | 02 |
| 18 | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 02 |
| 19 | 0511015346 | FLAT WASHER | 01 |
| 20 | 0501418516 | FIXING PLATE | 01 |
| 21 | 0503017675 | SCREW | 04 |
| 22 | 0503011075 | 3/4 UNC LOCK NUT | 04 |
