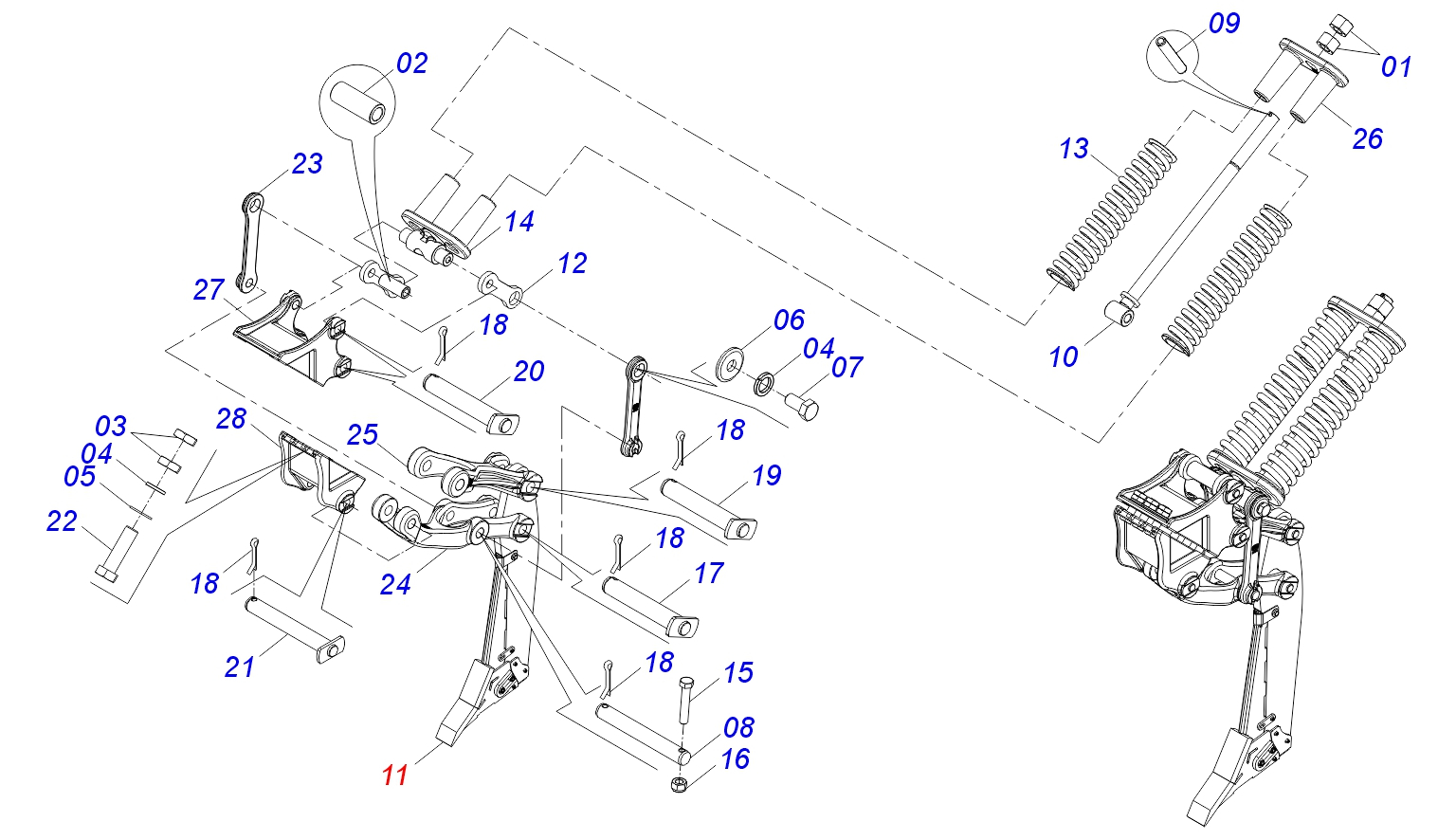

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0501010333 | 1.3/4" NUT | 02 |
| 02 | 0501411994 | ROD BUSHING | 01 |
| 03 | 0503013635 | NUT 1.5/8" | 12 |
| 04 | 0503010012 | SPRING WASHER 1" | 08 |
| 05 | 0501011445 | FLAT WASHER | 06 |
| 06 | 0521014196 | FLAT WASHER | 02 |
| 07 | 0503010953 | BOLT 1 UNC X 2 C S G.5 ZN | 02 |
| 08 | 0501510628 | AXLE WITH HOLE | 01 |
| 09 | 0503010361 | SPRING PIN | 01 |
| 10 | 0531067058 | SPRING GUIDE | 01 |
| 11 | 0541054109 | AUTOMATIC RESET ROD | 01 |
| 12 | 0501412023 | SPRING GUIDE ARTICULATION SUPPORT | 02 |
| 13 | 0503036919 | SPRING COMPRESSION 82.4 X 122 X 600 X 19.8 | 02 |
| 14 | 0541060979 | SPRING SUPPORT | 01 |
| 15 | 0501010096 | 3/8" X 2" BOLT | 02 |
| 16 | 0503013357 | SELF-ADJUSTING NUT 3/8" | 02 |
| 17 | 0541060978 | 194 COUPLING SHAFT | 01 |
| 18 | 0503012215 | 5/16" X 2.1/2" SPLIT PIN | 05 |
| 19 | 0541060975 | 173 COUPLING SHAFT | 01 |
| 20 | 0541060976 | 274 COUPLING SHAFT | 02 |
| 21 | 0541060977 | COUPLING SHAFT | 01 |
| 22 | 0501010171 | BOLT 1 UNC X 3.1/2 C S G.5 | 06 |
| 23 | 0502013190 | LEVER | 02 |
| 24 | 0502013189 | LOWER ARM PANTOGRAPH | 01 |
| 25 | 0502013186 | PANTOGRAPH TOP ARM | 01 |
| 26 | 0502013188 | SPRING UPPER GUIDE | 01 |
| 27 | 0502013187 | UPPER ROD SUPPORT | 01 |
| 28 | 0502013185 | LOWER ROD SUPPORT | 01 |
