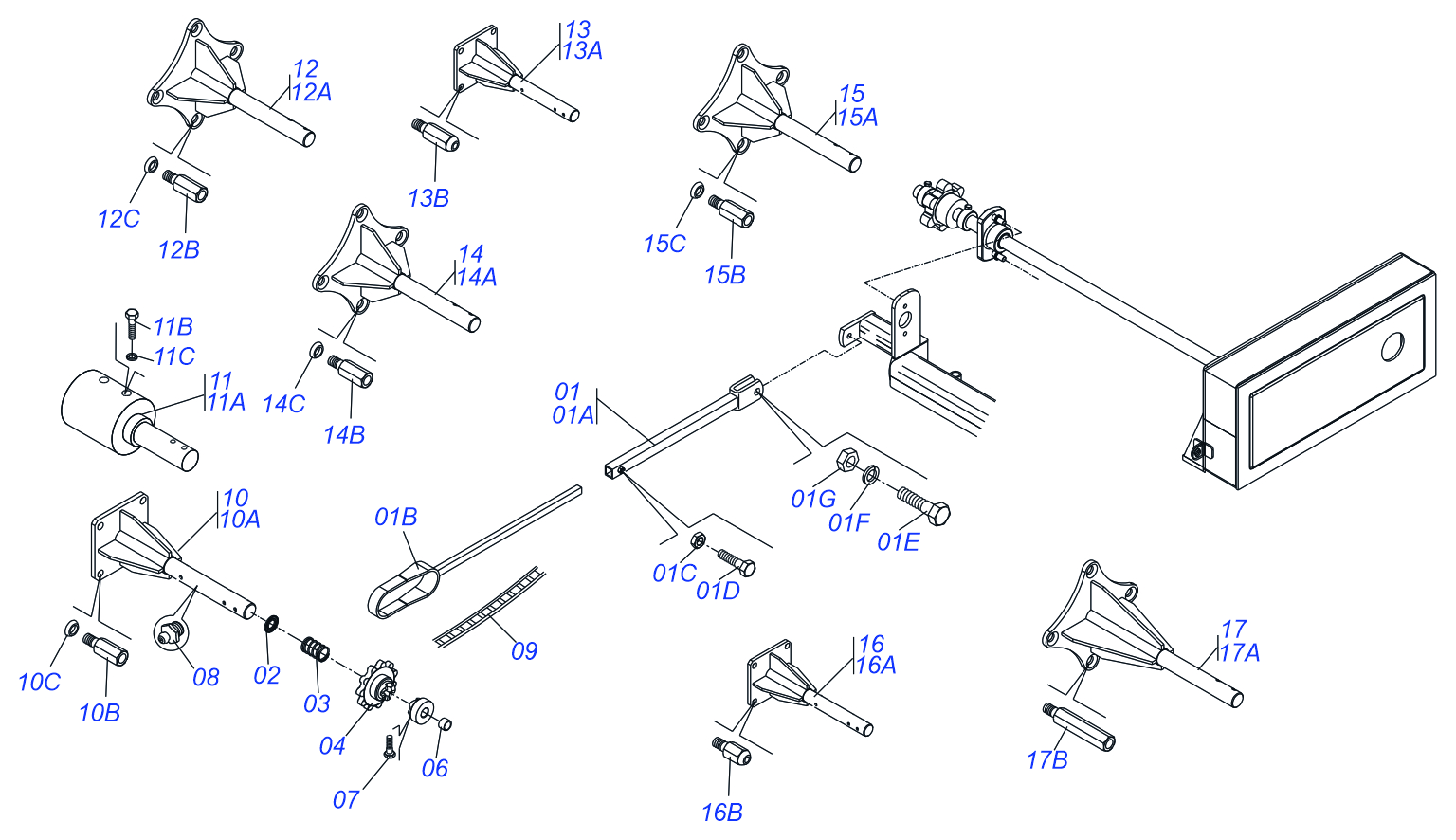

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0501057763 | ARM/DISARMENT ROD ASSY | 01 |
| 01A | 0511068860 | ROD DRIVING | 01 |
| 01B | 0511068861 | COUPLING/UNCOUPLING ARM | 01 |
| 01C | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 01 |
| 01D | 0501010161 | BOLT 1/2'' UNC X 1.1/4'' C S G.2 ZN | 01 |
| 01E | 0503010899 | 5/8 UNC X 2.1/4 BOLT | 01 |
| 01F | 0503010027 | SPRING WASHER 5/8" | 01 |
| 01G | 0503010013 | HEX NUT 5/8 UNC G.5 ZN | 01 |
| 02 | 0501010765 | SPINDLE GUIDE | 01 |
| 03 | 0503030086 | COMPRESSION SPRING | 01 |
| 04 | 0502011321 | 11Z GEAR WITH RIGHT DRAGGER | 01 |
| 05 | 0502011379 | RH FOLLOWER | 01 |
| 06 | 0501014453 | LOCK BUSHING | 01 |
| 07 | 0503010734 | BOLT 1/2" X 2-1/2" | 02 |
| 08 | 0503010002 | GREASE FITTING 1800 | 01 |
| 09 | 0503010253 | 57 CHAIN X 73 LINK | 01 |
| 10 | 0501057350 | SUPPORT MOTOR ASSY | 01 |
| 10A | 0501062862 | MOTOR SUPPORT | 01 |
| 10B | 0501016631 | SUPPORT FIXER MOTOR | 04 |
| 10C | 0511016819 | CONICAL SPRING WASHER | 04 |
| 11 | 0501057586 | MOTOR SUPPORT ASSY | 01 |
| 11A | 0511067550 | MOTOR SUPPORT | 01 |
| 11B | 0501010077 | BOLT 1/2" X 2" | 04 |
| 11C | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 04 |
| 12 | 0501057304 | SUPPORT MOTOR ASSY | 01 |
| 12A | 0511067495 | SUPPORT MOTOR | 01 |
| 12B | 0551011867 | FIXER SUPPLEMENT FIXER MOTOR | 04 |
| 12C | 0511016819 | CONICAL SPRING WASHER | 04 |
| 13 | 0501057332 | MOTOR SUPPORT ASSY | 01 |
| 13A | 0501061185 | MOTOR SUPPORT ASSY | 01 |
| 13B | 0501010763 | MOTOR SUPPORT FIXER | 04 |
| 14 | 0501057338 | MOTOR SUPPORT ASSY | 01 |
| 14A | 0511067495 | SUPPORT MOTOR | 01 |
| 14B | 0551011867 | FIXER SUPPLEMENT FIXER MOTOR | 04 |
| 14C | 0511016819 | CONICAL SPRING WASHER | 04 |
| 15 | 0501057356 | MOTOR SUPPORT ASSY | 01 |
| 15A | 0511067495 | SUPPORT MOTOR | 01 |
| 15B | 0551010306 | FIXER SUPPLEMENT FIXER MOTOR | 04 |
| 15C | 0511016819 | CONICAL SPRING WASHER | 04 |
| 16 | 0501057740 | MOTOR SUPPORT ASSY | 01 |
| 16A | 0501061185 | MOTOR SUPPORT ASSY | 01 |
| 16B | 0511014660 | MOTOR SUPPORT FIXER | 04 |
| 17 | 0501058914 | MOTOR SUPPORT ASSY | 01 |
| 17A | 0511067981 | MOTOR SUPPORT | 01 |
| 17B | 0561012398 | FIXER SUPPLEMENT FIXER MOTOR | 04 |
