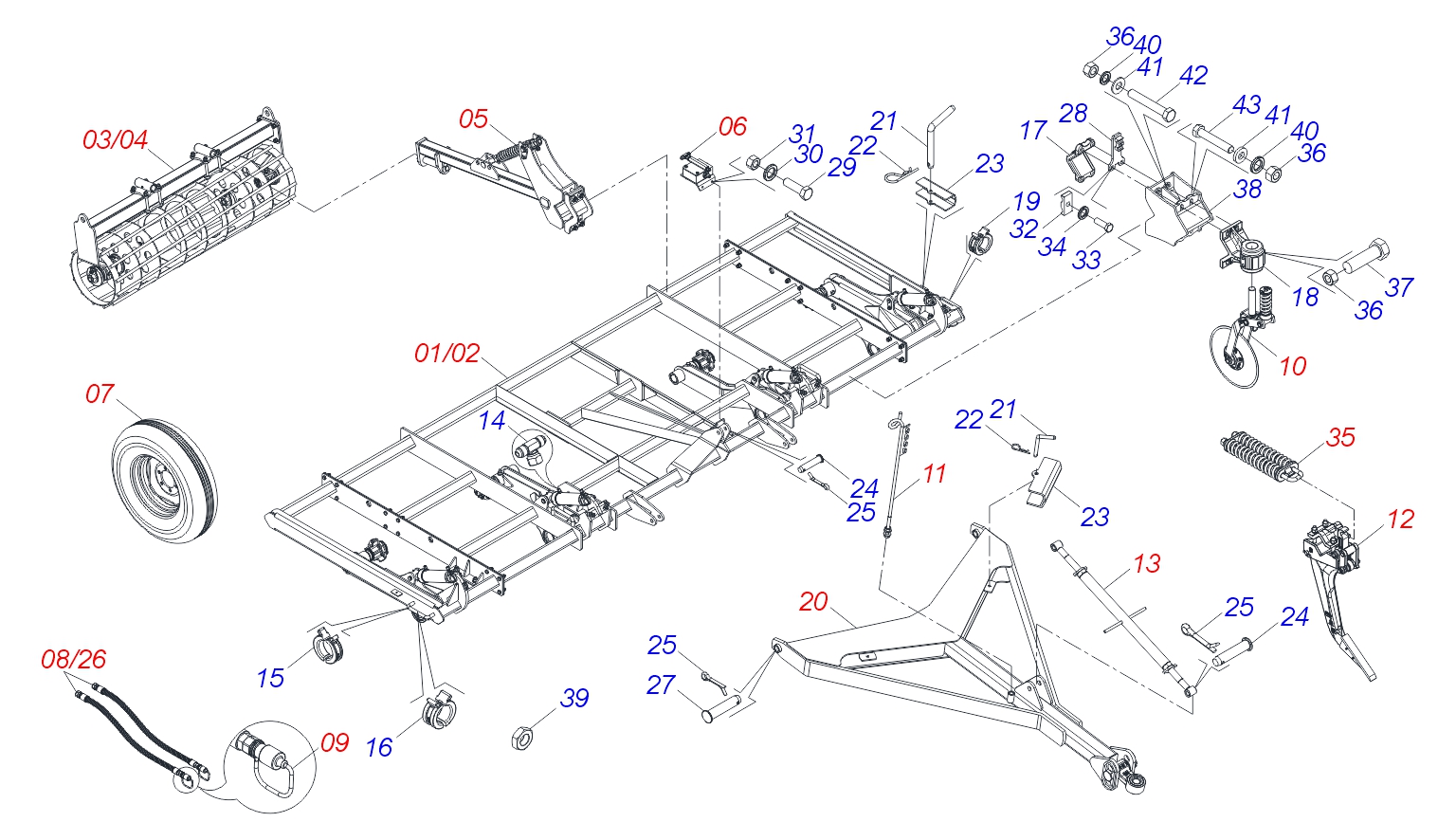

AERAMAX 300 BASIC - 15/17H DC

Folha
ITEMCODEDESCRIPTION15  17
01 0531047762 FRAME ASSY 15H AERAMAX 300 BASIC 01  00
02 0531047763 FRAME ASSY 17H AERAMAX 300 BASIC 00  01
03 0531047724 CAGE ROLLER ASSEMBLY 01  00
04 0531047761 CAGE ROLLER ASSEMBLY 00  01
05 0531047721 BREAKER ROLLER ARM ASSY 06  06
06 0511057534 FLOW DIVIDING VALVE 01  01
07 0503060091 L 29.5" X 0.63"-10L WHEEL AND TIRE ASSY 04  04
08 0541059998 HOSE KIT 15H 01  00
09 0501053834 MALE QUICK COUPLER 02  02
10 0541057412 20 CUTTING DISC CT/LG 15  17
11 0501040257 3/4" X 38" HOSE SUPPORT ASSY 01  01
12 0541059767 ROD WITHOUT FASTENER 15  17
13 0501047356 ESTABILIZER ASSY 01  01
14 0503037376 3/4" T ADAPTER WITH SWIVEL NUT 04  04
15 0501047895 25 ROD STOP 08  08
16 0501047887 40 ROD STOP 08  08
17 0502012789 FIXER SUPPORT FERTILIZER ROW 15  17
18 0502010064 DISC BLADE SUPPORT 15  17
19 0501047886 35 ROD STOP 08  08
20 0541059750 HEADER WITH HITCH 01  01
21 0541016844 FIXER LOCK 04  04
22 0503030285 HITCH PIN CLIP 04  04
23 0591016631 TRANSPORTATION LOCK 206 X 57 X 6,30 04  04
24 0521810579 COUPLING SHAFT 25 X 100 C A SA 02  02
25 0503010571 SPLIT PIN 1/4" X 1.1/2" 04  04
26 0551050010 HOSE ASSY 17H 00  01
27 0521810596 JUNCTION SHAFT 27,80 X 125 02  02
28 0541061606 HOSE CLAMP LOWER FIXER SUPPORT 02  02
29 0503010751 C3/8" X 1.1/4" HEX BOLT G.5 02  02
30 0503010025 SPRING WASHER 3/8" 02  02
31 0503010026 NUT 3/8" 02  02
32 1902010477 UPPER CLAMP BODY 08  08
33 0503011102 BOLT 7/16 UNC X 1.1/4 C S G.5 ZN 08  08
34 0503010180 SPRING WASHER 7/16" 08  08
35 0501052885 3/4 UNC X 17 FASTENER ASSY 15  17
36 0503010013 HEX NUT 5/8 UNC G.5 ZN 108  120
37 0503019116 BOLT 5/8 UNC X 2.1/4 C S RT PC G.5 ZN 30  34
38 0541061216 BLADE DISC EXTENDER 05  05
39 0501214182 NUT 5/8 UNC X 8,00 ZN 02  02
40 0503010027 SPRING WASHER 5/8" 80  88
41 0501310912 0.6" X 1" X 0.1" ZN FLAT WASHER 120  136
42 0501011543 5/8" X 4" BOLT 20  20
43 0501011541 5/8 UNC X 3 CS G.5 ZN1K28066 BOLT 60  68
