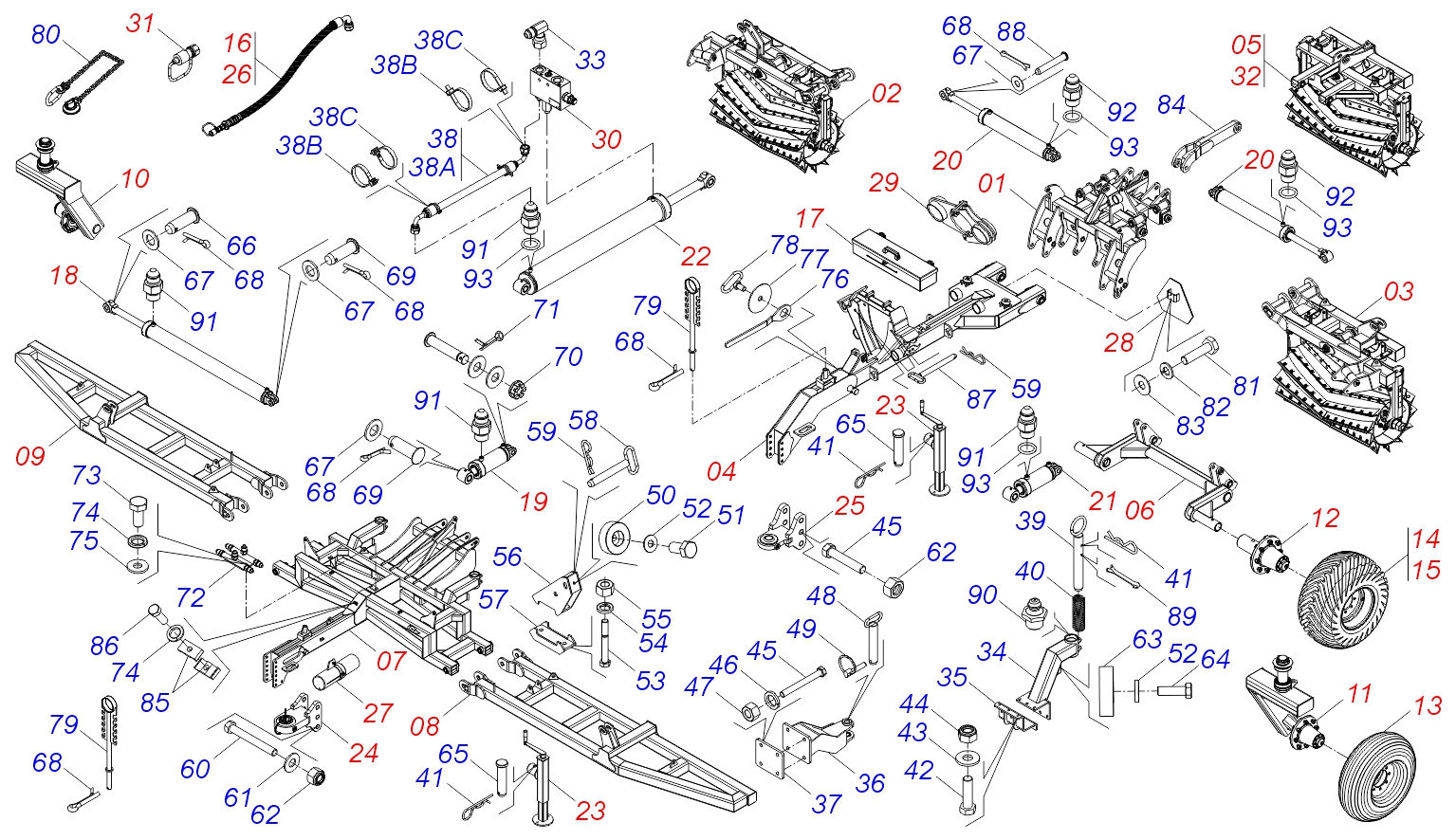

DOUBLE DRAWBAR FRAME ASSY CICLUS 5000

Folha
ITEMCODEDESCRIPTIONQT
01 0531045571 CENTRAL FRAME ASSY 02
02 0531045569 RIGHT SIDE FRAME ASSY 02
03 0531045568 LEFT SIDE FRAME ASSY 02
04 0531045570 DRAWBAR ASSY 02
05 0531045976 REAR FRAME ASSY 02
06 0531045924 AXLE WHEEL ASSY 02
07 0531046718 CENTRAL FRAME ASSY 01
08 0531046719 LEFT SIDE FRAME WITH AXLE 01
09 0531046720 RIGHT SIDE FRAME WITH AXLE 01
10 0541057023 RIGHT WHEELSET ASSY 02
11 0541057024 LEFT WHEELSET ASSY 02
12 0501056467 WHEEL WITHOUT TIRE 02
13 0503060244 WHEEL WITH TIRE11L-15 10L 8F ASSY 04
14 0503064500 WHEEL WITH TIRE 400/60 X 15.5-16L LEFT 02
15 0503064501 WHEEL WITH TIRE 400/60 X 15.5-16L RIGHT 02
16 0541055159 HOSE SET 02
17 0531045625 TOOL BOX ASSY 02
18 0531046688 63,50X150X1290X935 HYDRAULIC CYLINDER 02
19 0531046690 50,80X101,60X575X115 HYDRAULIC CYLINDER 01
20 0531045517 2" X 4" X 43.30" X 28.50" HYDRAULIC CYLINDER 04
21 0531045498 2" X 4.50" X 24.80" X 8.50" HYDRAULIC CYLINDER 04
22 0531045499 2.50" X 5.90" X 59.30" X 45.10" HYDRAULIC CYLINDER 02
23 0531046295 DRAWBAR JACK 03
24 0521049461 HITCH TONGUE WITH BUSHING 01
25 0531046463 TRACTOR HITCH WITH GREASE FITTING 02
26 0541057032 DOUBLE DRAWBAR HOSE SET 01
27 0541057126 MANUAL ASSY SUPPORT 01
28 0531040334 SAFETY TRIANGLE DECAL 02
29 0531046301 HOSES SUPPORT ASSY 02
30 0541055638 COUNTERBALANCE VALVE ASSY 02
31 0501053834 MALE QUICK COUPLER 12
32 0531046723 CENTRAL FRAME WITH ROLL 01
33 0503018034 HYDRAULIC FITTING JIC 37 X R.3/4 UNF 04
34 0541060071 ARM WHEEL 02
35 0541060072 THREE HOLES WHEELSET SUPPORT FIXER 02
36 0541060070 HITCHING SUPPORT 02
37 0501417805 HITCHING SUPPORT FIX PLATE 02
38 0541052532 3/8" X 57.10" TC-TC RED/GREEN CLAMP HOSE 02
38A 0501081974 3/8" X 57.10" TC-TC 180G HOSE 02
38B 0513011950 NYLON CLAMP 4,80 X 1,30 X 200 MM R22 (GREEN) 04
38C 0503018810 NYLON CLAMP 4,8 X 200 MM (RED) 04
39 0511064229 LOCK PIN 04
40 0503030978 COMPRES SPRING 04
41 0503030012 HITCH PIN CLIP 07
42 0503011244 5/8" X 2-1/4" BOLT 12
43 0581010763 17 X 40 X 4.00 FLAT WASHER 12
44 0503013389 5/8" SELF LOCKING NUT 12
45 0503013935 1 UNC X 9 C S G.8 ZN BOLT 14
46 0503010012 SPRING WASHER 1" 08
47 0501010059 NUT 1.5/8 08
48 0511064410 1.5" X 8.1" COUPLING SHAFT 02
49 0503030430 7/16 X 2" PIN LOCK 02
50 0581011153 FRAME BEATER 02
51 0503010962 5/8" X 1-1/4" BOLT 02
52 0571010265 16,50 X 40 X 3,00 ZN FLAT WASHER 06
53 0511016281 3/4" X 8" BOLT 04
54 0503010023 SPRING WASHER 3/4" 04
55 0503010014 HEX NUT 3/4" ZN G.5 (HEAVY) UNC 04
56 0541060075 BEATER SUPPORT 02
57 0511068361 FIXER 02
58 0521060352 LOCK AXLE FRAME 02
59 0503031035 HITCH PIN CLIP 06
60 0503014180 1" X 10 BOLT 03
61 0501010690 FLAT WASHER 26 X 58 X 4,75 03
62 0503018754 NUT 1 - 8 UNC - 2B G8 09
63 0501417706 FRAME BEATER 04
64 0501010100 BOLT 5/8'' UNC X 2 CS G.5 ZN 04
65 0561014251 COUPLING SHAFT 03
66 0521010547 1.2" X 6.5" COUPLING SHAFT 02
67 0501017779 FLAT WASHER 32 X 60 X 4,75 11
68 0503010523 1/4 X 2 SPLIT PIN 06
69 0521010779 31.75 X 95 COUPLING SHAFT 03
70 0501011301 1.1/2" UNC 6FPP 2.5/16" NUT 01
71 0503010010 1/4" X 2.1/2" SPLIT PIN 01
72 0501068706 DOUBLE CONNECTION 01
73 0503011338 BOLT 7/16" UNC X 1" CS G.5 ZN 02
74 0503010180 SPRING WASHER 7/16" 05
75 0501012803 FLAT WASHER 12 X 30 X 3,00 ZN 02
76 0501316941 KEY 2.1/8 AND 2.1/2 02
77 0521011722 FLAT WASHER 02
78 0501069343 WRENCH FIXER 02
79 0531062415 HOSE SUPPORT 805 03
80 0503013150 1300 X 3/8" CHAIN 02
81 0503010461 BOLT 1/4" UNC X 1" C S G.2 ZN 04
82 0503010143 SPRING WASHER 1/4" 04
83 0503010357 8 X 20 X 1 FLAT WASHER 04
84 0531069098 ROLLER SUPPORT ADJUSTMENT ARM 02
85 1902010477 UPPER CLAMP BODY 04
86 0503011102 BOLT 7/16 UNC X 1.1/4 C S G.5 ZN 03
87 0531066851 JOINT SHAFT 04
88 0501218778 31,75 X 200 JOINT SHAFT 04
89 0503010131 3/16" X 1.1/2" SPLIT PIN 04
90 0503010002 GREASE FITTING 1800 08
91 0501010617 NIPLE 3/4'' NF X 3/4'' NF HEX. 7/8'' X 44 16
92 0561014252 3/4" UNF X 1" NIPPLE WITH REDUCTION 08
93 0503010190 2-114 N 3006-9B O'RING 20
