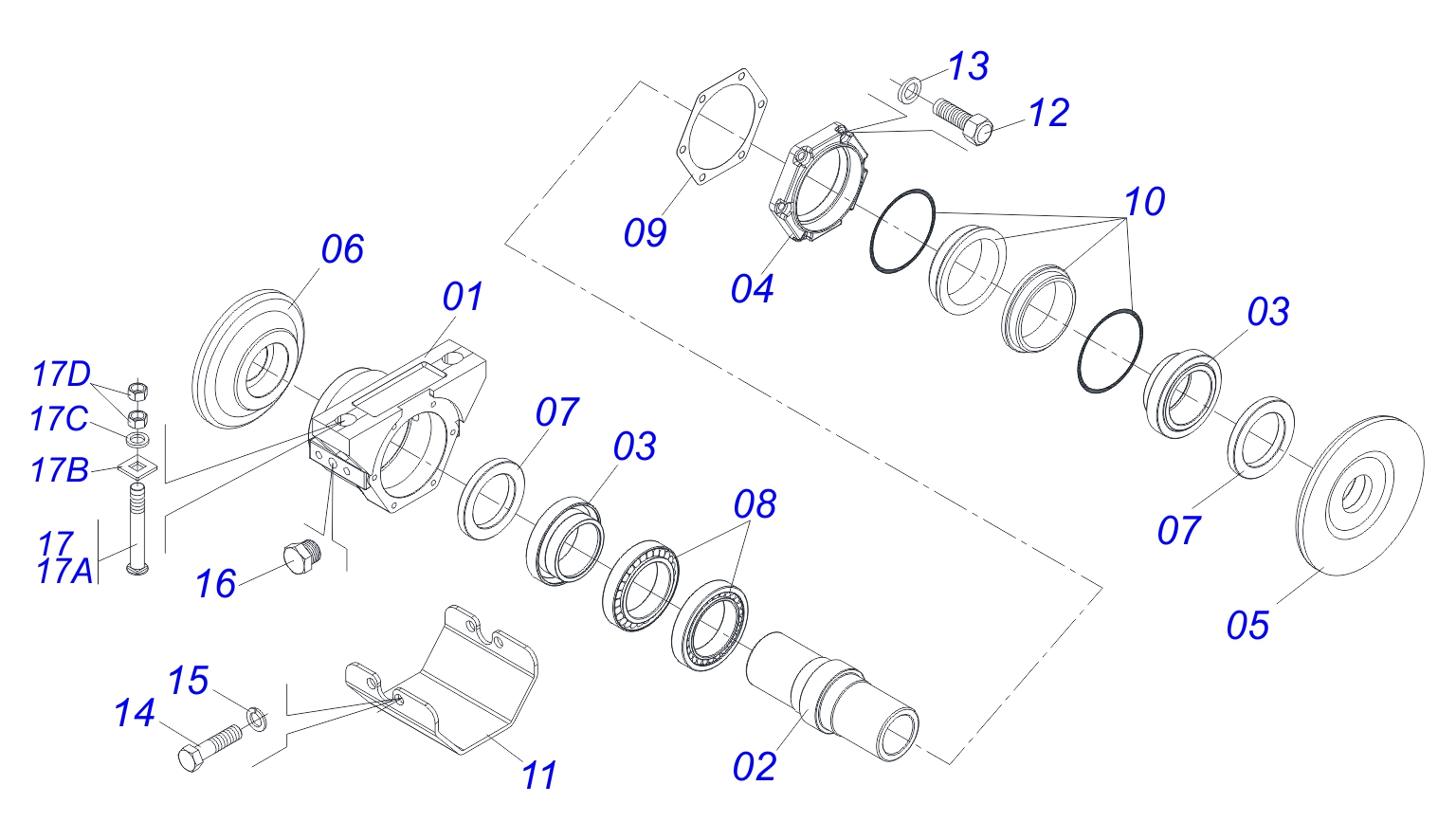

292 X 2.1/8" OIL BATH BEARING (0511047876) W/BOLT
| ITEM | CODE | DESCRIPTION | QT |
|---|---|---|---|
| 00 | 0511047876 | AGRICULTURAL BEARING | 02 |
| 01 | 0502012482 | HOUSING BEARING | 01 |
| 02 | 0502040810 | SHAFT FOR BEARING | 01 |
| 03 | 0502040198 | SEAL RETAINER | 02 |
| 04 | 0502012481 | BOX COVER | 01 |
| 05 | 0502040196 | INNER FLANGE | 01 |
| 06 | 0502040195 | OUTER FLANGE | 01 |
| 07 | 0561012972 | SPACING SLEEVE | 02 |
| 08 | 0503010107 | 27687/27620 BEARING | 02 |
| 09 | 0503032999 | JOINT | 01 |
| 10 | 0503030028 | JB-257 SEAL | 02 |
| 11 | 0551017124 | PROTETION COVER | 01 |
| 12 | 0503010175 | BOLT 3/8" X 1-1/4" | 06 |
| 13 | 0503011443 | SPRING WASHER 3/8" | 06 |
| 14 | 0503011401 | 1/2" X 3/4" BOLT | 04 |
| 15 | 0503010019 | SPRING WASHER 1/2" | 04 |
| 16 | 0503010856 | OIL PLUG R 3/8 BSPT | 02 |
| 17 | 0511046308 | 7/8" NC X 4.1/2" BOLT ASSY | 02 |
| 17A | 0503012460 | 7/8" X 4-1/2" BOLT | 02 |
| 17B | 0511064919 | BEARING SUPPORT SHIM | 02 |
| 17C | 0561013107 | FLAT WASHER | 02 |
| 17D | 0503010417 | 7/8" NUT | 02 |
