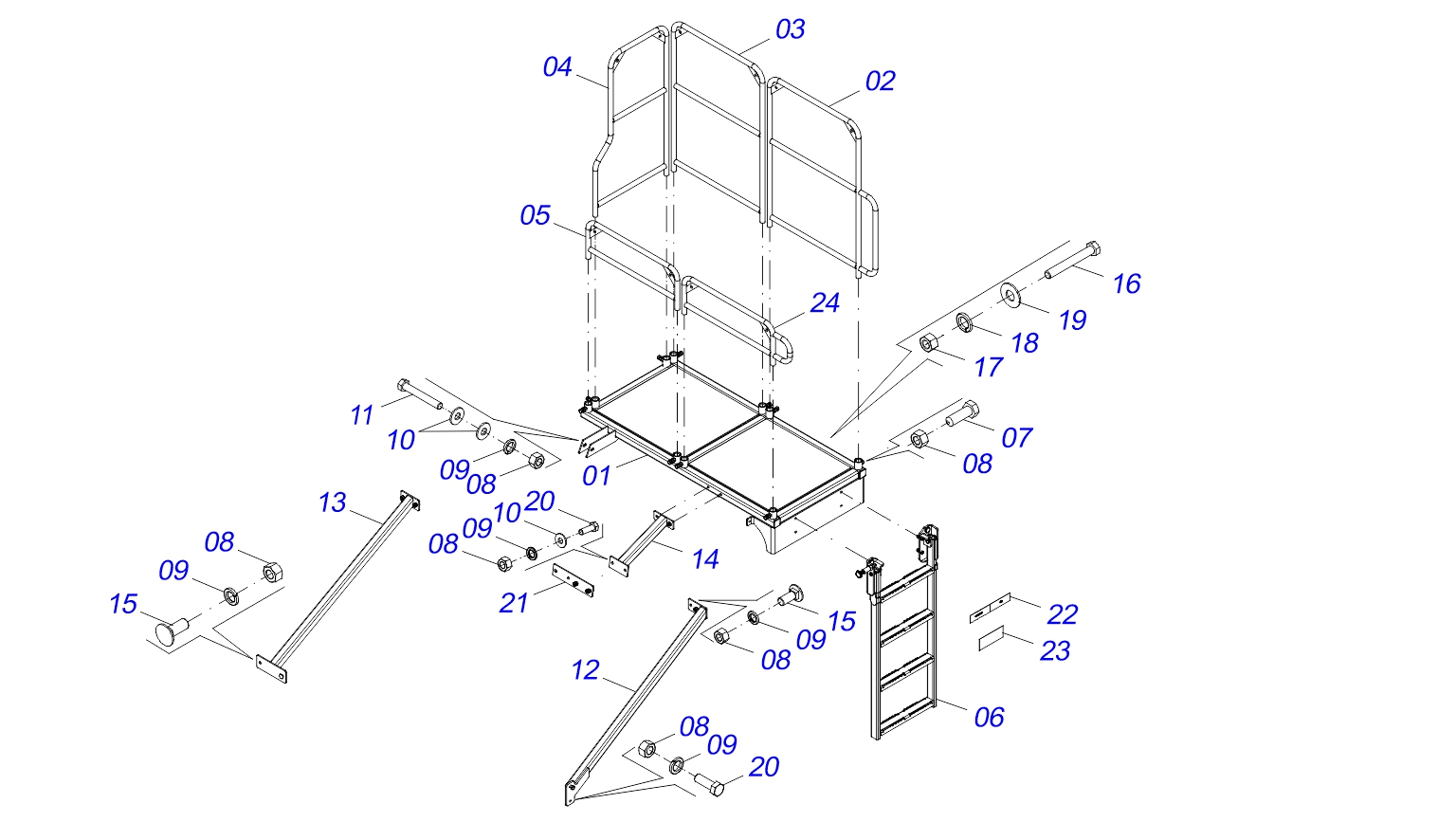

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0541060500 | PLATFORM FLOOR | 01 |
| 02 | 0531060221 | FRONT HANDRAIL WITH HANDLE | 01 |
| 03 | 0531060222 | FRONT HANDRAIL | 01 |
| 04 | 0531060220 | SIDE HANDRAIL | 01 |
| 05 | 0531060223 | HANDRAIL REAR | 01 |
| 06 | 0521056603 | COMPLETE MOBILE LADDER | 01 |
| 07 | 0503030678 | BOLT 1/2 UNC X 1.1/2 CSPC G.5 ZN | 10 |
| 08 | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 22 |
| 09 | 0503010019 | SPRING WASHER 1/2" | 12 |
| 10 | 0511017302 | FLAT WASHER 13.50 X 32.50 X 3.0 ZN | 03 |
| 11 | 0503010752 | 1/2" X 3.1/2" BOLT | 01 |
| 12 | 0541060499 | LEFT PLATFORM FIXER | 01 |
| 13 | 0541060498 | RIGHT PLATFORM FIXER | 01 |
| 14 | 0541060497 | PLATFORM FIXER | 01 |
| 15 | 0503014734 | BOLT | 06 |
| 16 | 0503011141 | BOLT 3/8" X 2-3/4" | 02 |
| 17 | 0503010026 | NUT 3/8" | 02 |
| 18 | 0503010025 | SPRING WASHER 3/8" | 02 |
| 19 | 0501013518 | FLAT WASHER 10.50 X 24 X 1.50 ZN | 02 |
| 20 | 0503010920 | 1/2 UNC X 1.1/2 C S G.5 ZN BOLT | 05 |
| 21 | 0501419118 | PLATFORM FIXER SUPPORT | 01 |
| 22 | 0503013229 | REFLECTIVE SIDE BAND | 01 |
| 23 | 0503031565 | CAUTION TRANSPORTATION DECAL | 01 |
| 24 | 0541062151 | REAR HANDRAIL | 01 |
