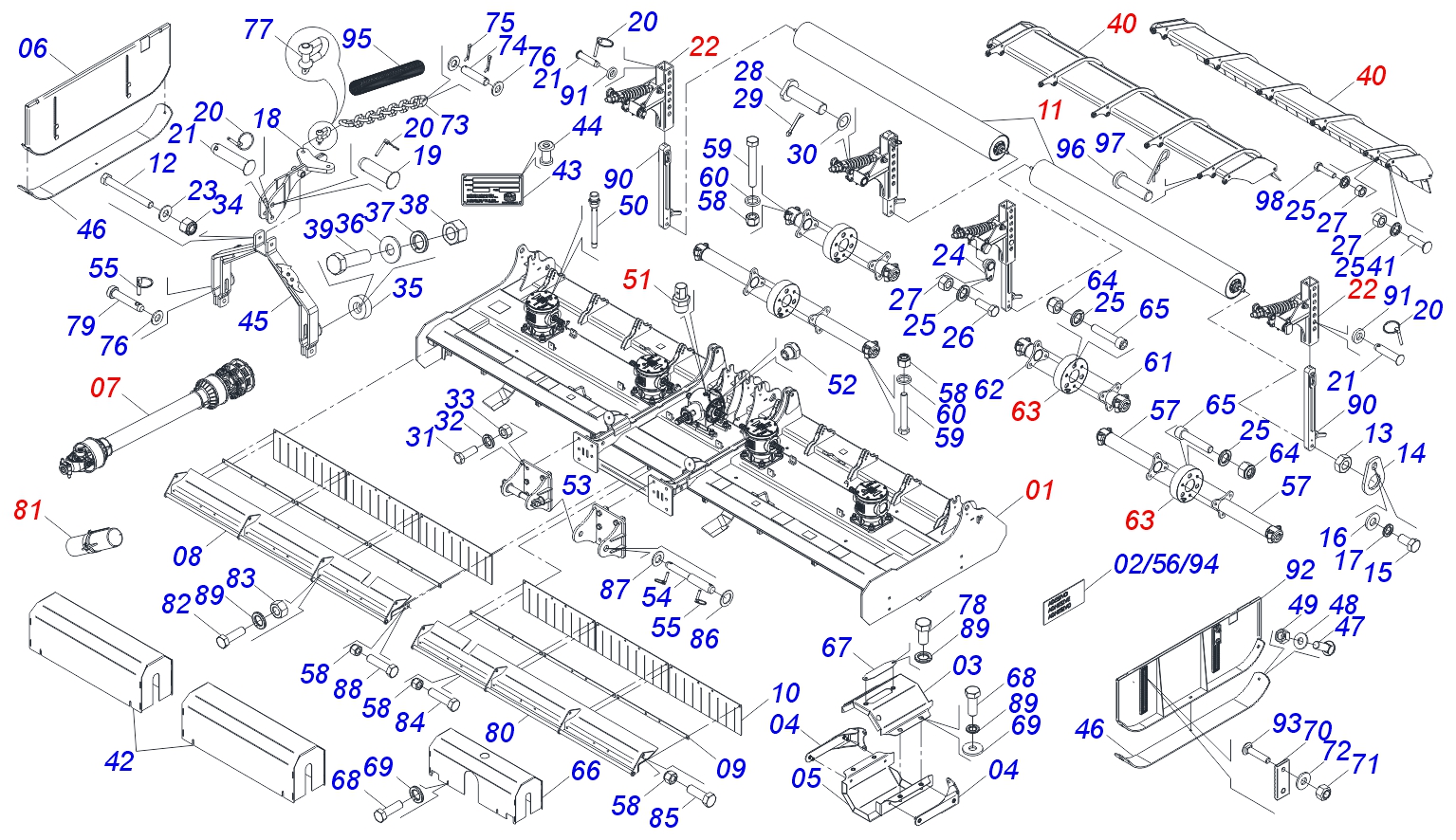

| ITEM | CODE | DESCRIPTION | QT |
|---|
| 01 | 0541059927 | SEMIFINISHED FRAME | 01 |
| 02 | 0503034247 | LUBRICATION POINT DECAL | 01 |
| 03 | 0501110998 | CARDAN TOP PROTECTION COVER | 01 |
| 04 | 0501110997 | LARGER SUPPORT COVER PROTECTION | 02 |
| 05 | 0501111144 | BOTTOM PROTECTION COVER COUPLING WITH RIVET | 01 |
| 06 | 0541061887 | LEFT LOW SKID | 01 |
| 07 | 0511043450 | DRIVE SHAFT | 01 |
| 08 | 0511075326 | RIGHT FRONT PROTECTION | 01 |
| 09 | 0501513622 | PROTECTIVE CANVAS FIXING RULER | 06 |
| 10 | 0503037731 | FRONT PROTECTION RUBBER BLANKET | 06 |
| 11 | 0531047938 | REGULATOR ROLLER HEIGHT ASSY | 02 |
| 12 | 0501011545 | 3/4" X 6-1/2" BOLT | 01 |
| 13 | 0501314148 | 3/4 UNF NUT | 04 |
| 14 | 0591011531 | 3/4 LOCK NUT | 04 |
| 15 | 0503012556 | 1/2" X 1" BOLT | 04 |
| 16 | 0501010937 | FLAT WASHER 13.50 X 28 X 3.00 | 04 |
| 17 | 0503011440 | SPRING WASHER | 04 |
| 18 | 0541061886 | ASSY HITCHING SUPPORT | 01 |
| 19 | 0511011887 | COUPLING SHAFT | 01 |
| 20 | 0503030085 | LOCK PIN | 06 |
| 21 | 0521010578 | COUPLING SHAFT | 05 |
| 22 | 0531047939 | SIDE ROLLER ARM LEFT/RIGHT | 04 |
| 23 | 0501010322 | FLAT WASHER 20.50 X 46 X 4.00 ZN | 01 |
| 24 | 0521063151 | TRUNNION LOCK ARTICULATOR SPRING ROD | 08 |
| 25 | 0503010019 | SPRING WASHER 1/2" | 46 |
| 26 | 0503010920 | 1/2 UNC X 1.1/2 C S G.5 ZN BOLT | 08 |
| 27 | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 22 |
| 28 | 0521010808 | 1.4" X 5.8" COUPLING SHAFT | 04 |
| 29 | 0503012267 | 5/16" X 3" SPLIT PIN | 04 |
| 30 | 0511019685 | FLAT WASHER | 04 |
| 31 | 0501018059 | 3/4" X 2-1/4" BOLT | 10 |
| 32 | 0503010023 | SPRING WASHER 3/4" | 10 |
| 33 | 0503010014 | HEX NUT 3/4" ZN G.5 (HEAVY) UNC | 10 |
| 34 | 0503011075 | 3/4 UNC LOCK NUT | 01 |
| 35 | 0521011481 | FRAME BATTERY | 02 |
| 36 | 0571010265 | 16,50 X 40 X 3,00 ZN FLAT WASHER | 02 |
| 37 | 0503010027 | SPRING WASHER 5/8" | 02 |
| 38 | 0503010013 | HEX NUT 5/8 UNC G.5 ZN | 02 |
| 39 | 0501010100 | BOLT 5/8'' UNC X 2 CS G.5 ZN | 02 |
| 40 | 0531047941 | CONTROLLER COVER REAR ASSY | 02 |
| 41 | 0503019293 | SCREW 1/2 UNC X 2 COVER G7 ZN | 04 |
| 42 | 0501513704 | COUPLING PROTECTION COVER | 02 |
| 43 | 0503034003 | 61 X 118 SERIAL NUMBER TAG | 01 |
| 44 | 0503010001 | RIVET 3,2 X 5,5 | 04 |
| 45 | 0541061885 | HITCH HEADER | 01 |
| 46 | 0501513735 | SKID GUIDE | 02 |
| 47 | 0503012956 | 1/2" X 1-1/2" BOLT | 06 |
| 48 | 0511017302 | FLAT WASHER 13.50 X 32.50 X 3.0 ZN | 06 |
| 49 | 0503012682 | 1/2" BSW NUT | 06 |
| 50 | 0503035188 | OIL LEVEL MAKER | 04 |
| 51 | 0511056241 | 3/8 BSPT BREATHER | 01 |
| 52 | 0503035742 | VISOR LEVEL TIP IS 3/8 BUST | 01 |
| 53 | 0541061890 | HITCH SUPPORT FIXER | 02 |
| 54 | 0541015542 | 1.1/8" HITCH AXLE | 02 |
| 55 | 0503030430 | 7/16 X 2" PIN LOCK | 06 |
| 56 | 0503031087 | AUTO CONTROL APPROVED DECAL | 01 |
| 57 | 0541061926 | LARGER COUPLING 1.3/8 | 04 |
| 58 | 0503010589 | SELF ADJUSTING NUT 1/2" UNC | 34 |
| 59 | 0503010847 | 1/2" X 3.1/4" BOLT | 16 |
| 60 | 0541012143 | FLAT WASHER | 15 |
| 61 | 0541061908 | SMALLER COUPLING 1.3/8 | 02 |
| 62 | 0541061910 | SMALLER COUPLING 1.3/4 | 02 |
| 63 | 0531048057 | SPRING COUPLING | 04 |
| 64 | 0513012552 | M12X1,75 SELF LOCKING NUT | 24 |
| 65 | 0503019015 | BOLT | 24 |
| 66 | 0501513716 | CENTRAL COVER COUPLING | 01 |
| 67 | 0581012546 | LUBRICATION AXIS TRANSMISSION | 01 |
| 68 | 0503010237 | BOLT 3/8" X 1" | 16 |
| 69 | 0501010984 | FLAT WASHER 10.50 X 27 X 3.00 | 12 |
| 70 | 1902013205 | SQUARE WASHER | 04 |
| 71 | 0503012412 | 5/8" UNC SELF LOCKING NUT | 08 |
| 72 | 0501012140 | FLAT WASHER 16,50 X 40 X 4,00 ZN | 08 |
| 73 | 0503065015 | CHAIN 3/4X17 LINKS | 02 |
| 74 | 0501513769 | AXLE 25.40X110 WITH HOLE | 02 |
| 75 | 0503010523 | 1/4 X 2 SPLIT PIN | 04 |
| 76 | 0511015994 | FLAT WASHER | 06 |
| 77 | 0503014321 | CABLE STEEL SHACKLE | 02 |
| 78 | 0503010256 | 3/8" X 3/4" BOLT | 02 |
| 79 | 0521010498 | 0.9" X 5.1" COUPLING SHAFT | 02 |
| 80 | 0511075331 | FRONT PROTECTION LEFT | 01 |
| 81 | 0541053918 | MANUAL CANISTER ASSY | 01 |
| 82 | 0503012444 | 3/8" X 1-1/4" BOLT | 24 |
| 83 | 0503010026 | NUT 3/8" | 24 |
| 84 | 0503010740 | BOLT 1/2 UNC X 2 CS G.5 ZN | 12 |
| 85 | 0501010063 | 1/2" X 1-1/2" BOLT | 04 |
| 86 | 0541018684 | FLAT WASHER | 02 |
| 87 | 0511017480 | FLAT WASHER | 02 |
| 88 | 0503010905 | 1/2" X 2-1/4" BOLT | 02 |
| 89 | 0503010025 | SPRING WASHER 3/8" | 42 |
| 90 | 0541061911 | SIDE ROLLER SUPPORT | 04 |
| 91 | 0521012087 | FLAT WASHER | 04 |
| 92 | 0541061914 | RIGHT LOW SKATE | 01 |
| 93 | 0501011234 | 5/8" X 3" BOLT | 08 |
| 94 | 0503031127 | RESPIRO DECAL | 05 |
| 95 | 039003 | CONDUCTOR 3 X 900 WITH PROTECTION | 02 |
| 96 | 0551012464 | JUNCTION SHAFT | 10 |
| 97 | 0503030168 | HITCH PIN CLIP | 10 |
| 98 | 0501010077 | BOLT 1/2" X 2" | 10 |
